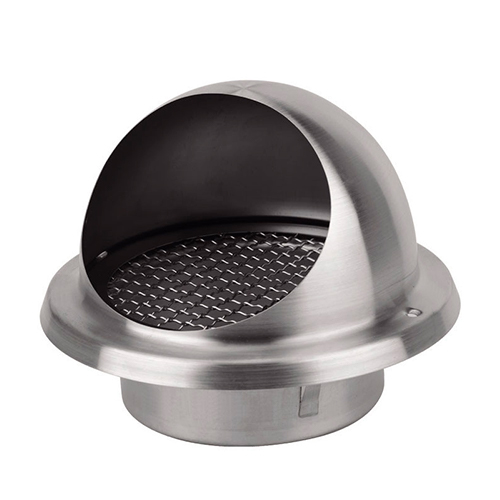

The SSL-B diffuser is made entirely of stainless steel with a matt finish. Thanks to the material, it has a high resistance to atmospheric influences. Equipped with a bird net.
Stainless steel SSL-B diffusers can be installed in ducts or round openings in external walls. It can serve as supply or exhaust openings in ventilation systems. Stainless steel shutters have wire mesh inside to prevent birds from entering. The SSL-B has rubber gaskets and is equipped with mounting clips for easy installation. Differs in attractive appearance and durability.
Specifications:
- For air supply and exhaust
- Size from 100 to 200 mm
- Stainless steel
- Bird net
- High weather resistance
Dimensions:
| Product code | D (мм) | D1 (мм) | D2 (мм) | H (мм) |
| SSL-B 100 | 95 | 100 | 148 | 48 |
| SSL-B 125 | 120 | 125 | 188 | 48 |
| SSL-B 150 | 145 | 150 | 210 | 56 |
| SSL-B 160 | 155 | 160 | 210 | 61 |
| SSL-B 180 | 175 | 180 | 272 | 66 |
| SSL-B 200 | 195 | 200 | 272 | 70 |
