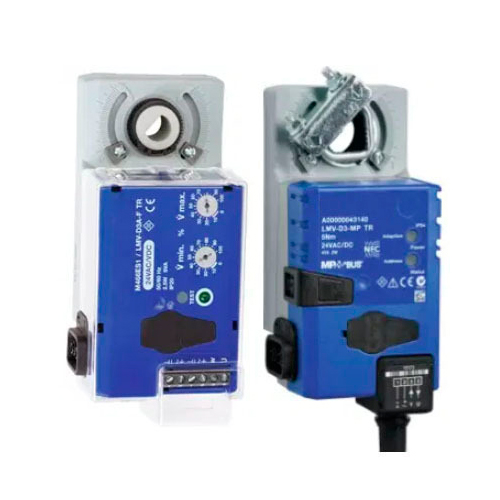

The VAV air flow controller is equipped with an effective pressure sensor to measure the air flow. Control components (optional accessories) include an effective pressure sensor that converts the effective pressure into an electrical signal, a controller and an actuator; The control functions can be implemented with the Easy controller, Compact controller or individual components (Universal or LABCONTROL). In most cases, the temperature value is set by the room temperature controller. The flow controller compares the actual and set values and, if there is a deviation, generates a corresponding signal to the valve actuator.
| Dimensions | 100 – 400 мм |
| Air flow range | 34 – 7591 м³ |
| Air flow control range (device for dynamic measurement of effective pressure difference) | About 10 – 100 % |
| Air flow control range (static differential effective pressure measuring device) | About 15 – 100 % |
| Minimum differential pressure | to 117 Pa |
| Max differential pressure | 1000 Pa |
| Working temperature | from 10 to 50 °C |
